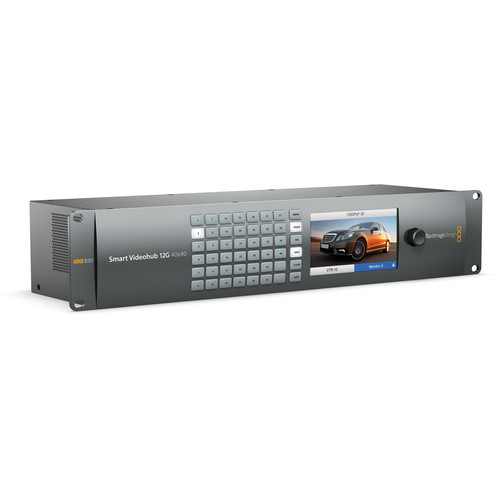

The Smart Videohub 40 x 40 12G-SDI from Blackmagic Design is a mixed format router with 40 12G-SDI inputs and 40 12G-SDI outputs for routing any combination of SD, HD, Ultra HD 4K, and DCI 4K video. It supports 4:2:2 and 4:4:4 color sampling and 10-bit processing for smoother gradations. Housed in a 2RU frame, the Smart Videohub ideal for use in both large broadcast systems or portable mini racks for live productions. A built-in LCD lets view your sources directly on the router itself, with simple push buttons and spin knob provided for control. Routing can also be controlled using dedicated remote panels or over Ethernet using the included software for Mac OS X and Windows. You can even use the available iPad app to change routing over your wireless network. Note: IEC power cables is not included. 40x 6G-SDI inputs / 40x 12G-SDI outputs Auto-detects between SD, HD, Ultra HD 4K, and DCI 4K and instantly switches standards Built-in SDI reclocking on every SDI input Supports 8-bit, 10-bit, and 12-bit 4:2:2 and 4:4:4 signals 4:2:2 or 4:4:4 color sampling with 10-bit processing UHD 4K (3840 x 2160) up to 60p Supports DCI 4K (4096 x 2160) at 60p HD Video Resolutions up to 1080p60 Supports 16 channels of embedded audio on each SDI signal Genlock Reference input compatible with black burst and tri-sync Built-in video monitoring and spin knob control Push buttons on front panel On-screen labels support Unicode so they work in non-Roman character sets such as Chinese, Japanese, Korean, Russian, German, French, Spanish, and more Videohub control software included for control over Ethernet Ethernet control allows direct connection to the computer network and is compatible with Videohub Smart Control and Videohub Master Control panels Apple iPad control panel app available Create your own custom router control with free software developer kit Machined aluminum 2RU chassis Redundant power supplies IEC power cables required
