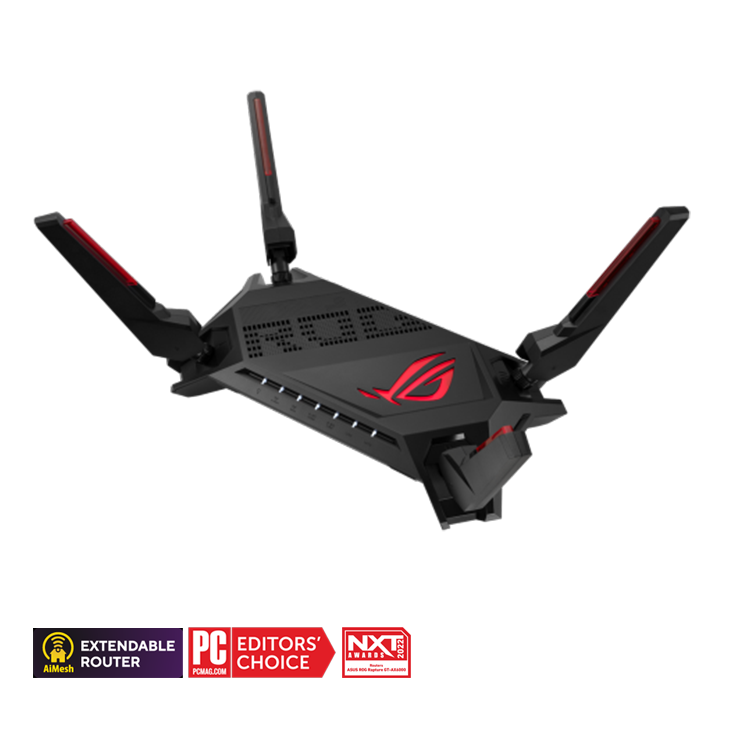

ASUS ROG Rapture GT-AX6000 Dual-Band WiFi 6 (802.11ax) Gaming Router

Network Standard IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11ax IPv4 IPv6 Product Segment AX6000 ultimate AX performance WiFi Data Rate 2.4GHz AX: 4×4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps 5GHz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps Antenna External antenna x 4 Transmit / Receive 2.4GHz 4×4 5GHz 4×4 Processor 2.0 GHz quad-core processor Memory 256 MB Flash, 1 GB RAM Boosts Speed OFDMA (Orthogonal Frequency Division Multiple Access), Beamforming: standard-based and universal, 1024-QAM high data rate, 20/40/80/160 MHz bandwidth, Operating Frequency 2.4G Hz / 5 GHz Operating Mode Accesspoint, AiMeshnode, Mediabridge, Repeater, Router I/O Ports RJ45 for 2.5 Gigabits BaseT for WAN/LAN x 1, RJ45 for 2.5 Gigabits BaseT for LAN x 1, RJ45 for Gigabits BaseT for LAN x 4, USB 3.2 Gen 1 x 1, USB 2.0 x 1 Buttons WPS Button, Reset Button, Power Button, LED Control Button LED Indicator Power x 1 2.4GHz x 1 5GHz x 1 2.5G WAN x 1 2.5G LAN x 1 LAN x 1 WPS x 1 Power Supply AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 2.37 A current or 19.5 V with max. 2.31 A current Package Content GT-AX6000 WiFi 6 Dual-Band Gaming Router RJ-45 cable Power Adapter Quick Start Guide Warranty Card Product Weight (g) 1121.4 g Product Dimensions 337.7 x 196.0 x 220.9 mm AiMesh AiMesh • Primary AiMesh Router • AiMesh Node Game Game Boost / Acceleration ROG_First OpenNAT (Game Profile) Gaming Port Parental Control “Allow you to block access to unwanted websites and apps.” Parental Control Customized Internet Schedule Guest Network “The Guest Network provides Internet connection for guests but restricts access to your local network.” • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3 Guest Network Connection time limit Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal Security WiFi Encryption : Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise WPS SSH Firewall • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64 AiProtection AiProtection Pro • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking VPN VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Fusion Traffic Control Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter — Maximum Bandwidth Limiter Rule : 32 Traditional QoS — Maximum Traditional QoS Rule : 32 Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Traffic Analysis Period : Daily, Weekly, Monthly • Website History WAN Internet Connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN WAN Aggregation 3G / 4G LTE Dongle 4G / 5G Auto Mobile Tethering Port Forwarding • Maximum Port Forwarding Rule : 64 Port Triggering • Maximum Port Triggering Rule : 32 DMZ DDNS NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay LAN DHCP Server IGMP Snooping IPTV LAN Link Aggregation Manually Assign IP Address • Maximum Manually Assign IP Address Rule : 64 Wake on LAN (WOL) Wireless MU-MIMO UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming USB application 4G / 5G Auto Mobile Tethering File System : HFS , NTFS, vFAT, ext2, ext3, ext4 Safely Remove Disk AiCloud Download Master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder Privileges User Interface Operating system : ASUSWRT Administration Configuration Backup and Restore Diagnosis Tools Feedback System System Log
